MYeBOX®. More than a portable

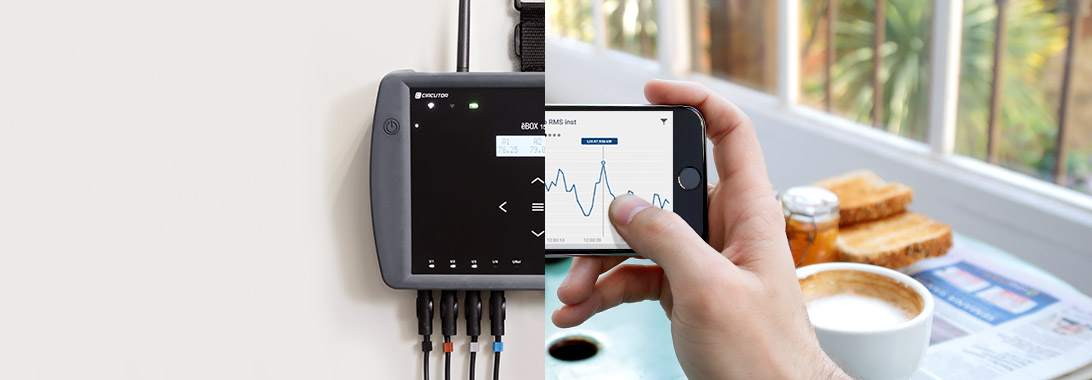

MYeBOX® is an innovative portable network and power quality analyser, which has been specially designed to perform energy audits. The unit features a Wi-Fi and 3G communication system (depending on the model) and can be configured and monitored remotely with a Smartphone or Tablet, without the need to be present at the facility.
Simplicity
MYeBOX® is an innovative portable network and power quality analyser, which has been specially designed to perform energy audits. The unit features a Wi-Fi and 3G communication system (depending on the model) and can be configured and monitored remotely with a Smartphone or Tablet, without the need to be present at the facility.
Full Control
With MYeBOX®, it takes a matter of seconds to check any aspect of the system. Also, the device sends alerts by email, relating to any parameter that is critical for the energy efficiency or proper operation of the system (reactive energy, maximeter power, overcurrent, voltage fault, etc.)
Connection
In this age of information, we receive large amounts of real-time information. Using Wi-Fi and 3G communications, MYeBOX® allows you to fully configure the analyser and view all of the data remotely, from anywhere and at any time.
Savings
A system designed for saving: Time, Money and Energy. It speeds up installation time and the analysis of measurements. You can complete a measurement remotely, send it to MYeBOX® Cloud and prepare the relevant report without needing to go anywhere to uninstall the unit.
MYeBOX® features an internal memory and a new built-in remote data storage system, allowing any user to access the data from a free server in the “MYeBOX® Cloud“.
The unit can select the registration period of each variable independently for more complex studies, offering a high measuring versatility.
Energy audits are a very simple task, thanks to the connectivity features and versatility of the MYeBOX® analyser.
Features of the unit
- Wi-Fi / 3G Communications (depending on the model)
- FREE management and control App (Android and iOS)
- Measurement of the main power quality and electrical parameters
- 4 or 5 voltage and current measuring inputs (depending on the model)
- Quality events in voltage according to EN 50160
- Recording of the transients / wave shape
- Class A, according to IEC 61000-4-30
- 2 transistor inputs and 2 transistor outputs (depending on the model)
- Sending of alarms via e-mail
- Analysis of logs with the FREE PowerVision Plus software
MYeBOX® Cloud system
New audit system.
Designed for measurement and electrical parameters recording, MYeBOX® incorporates the latest technology in portable measurement. This new analyzer incorporates wireless connections for full remote control. The latest wireless technologies applied to the robustness of CIRCUTOR’s measuring devices.
Find out how MYeBOX® revolutionizes the traditional portable measurement.
Video presentation

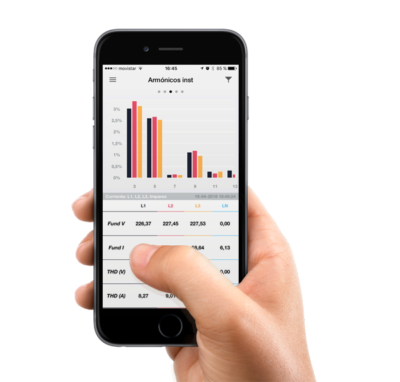

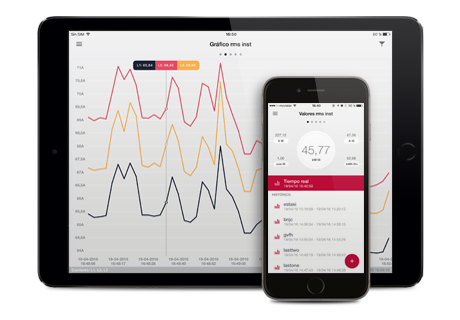

App
With MYeBOX® Cloud you will have wireless access to remote devices. You will can configure and download data remotely, without moving anywhere.
The App also allows:
Real-time measurements visualization.
Email Alarm
Start and stop recording data.
Stored data visualization.
Send the data stored to MYeBOX® Cloud
Generate STD files, compatible with PowerVision Plus.
Share STD files

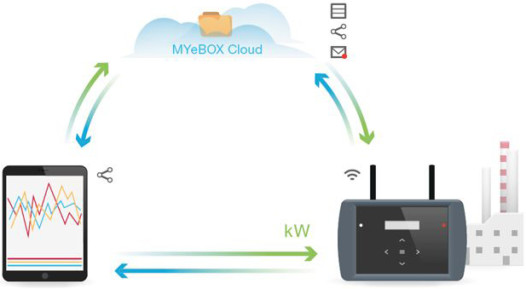

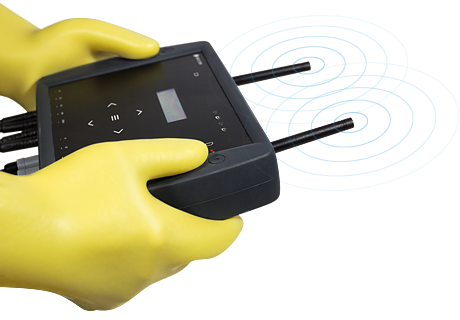

Connectivity
Wi-Fi / 3G allows to connect with MYeBOX® from anywhere. You can configure, download the data recorded, send data to MYeBOX® Cloud and share them, receive alarm messages by mobile application without wires. You choose when and from where you do it.
Storage
The MYeBOX® has two storage systems: One is the analyzer’s internal memory, which allows the recording of a large amount of data and MYeBOX® Cloud where you can send the data registered, read it any time or share it with the group of work.
Models

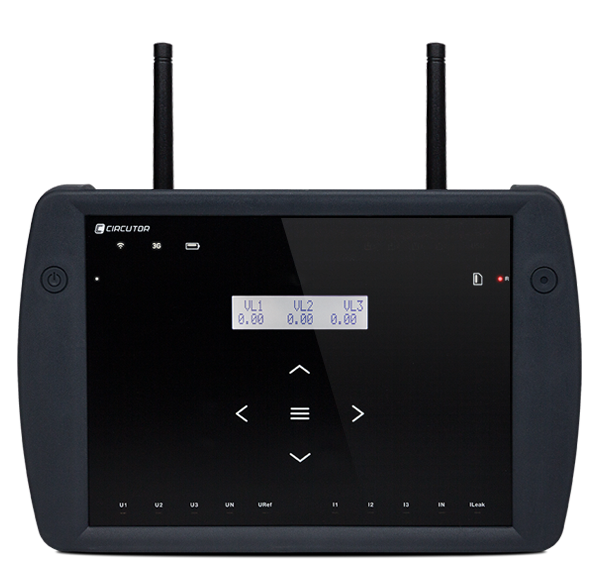

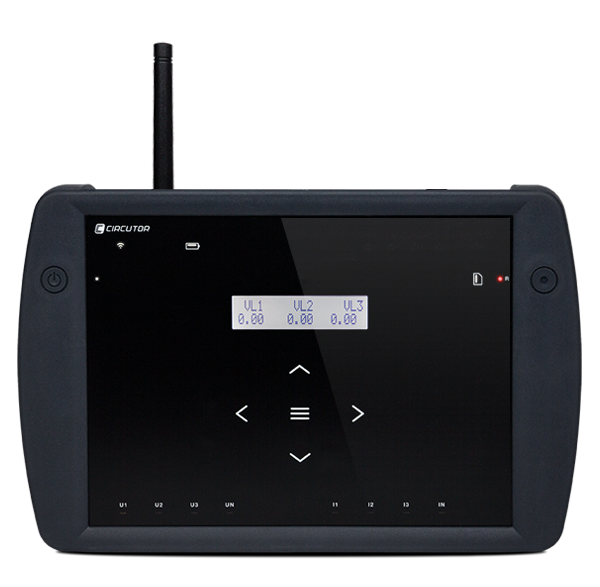

MYeBOX® 150
MYeBOX® 1500
generated energy; Quality network parameters.

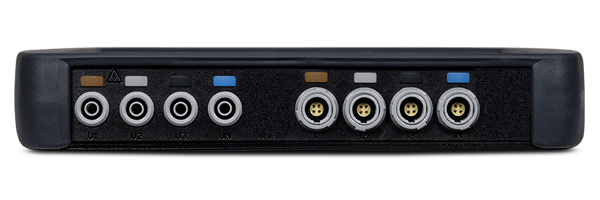

4 voltage measurement inputs

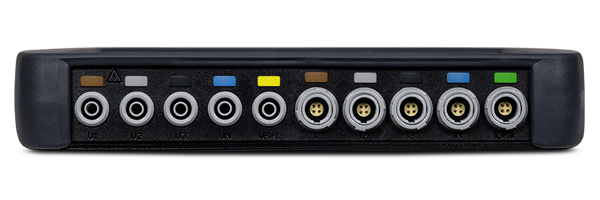

5 voltage measurement inputs
4 current measurement inputs
5 current measurement inputs
–
2 transistor inputs (to centralize
impulses / energy souce)
–
2 transistor outputs (alarms)
software)
MYeBOX® 150
MYeBOX® 1500

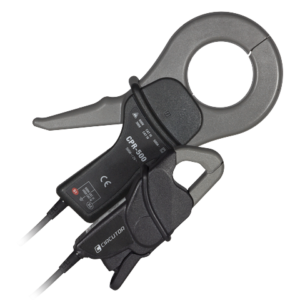

RIGID CURRENT CLAMPS

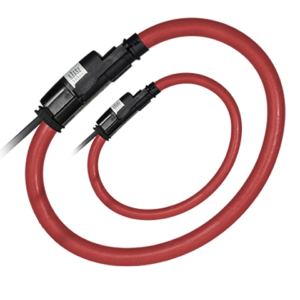

FLEXIBLE CURRENT CLAMPS
STANDARDS CLAMPS
The accurate measures.
All you need to make accurate measures are MYeBOX® flexible clamps. An extensive range of current clamps that allow you to measure any type of installation. MYeBOX® is also compatible with other current sensor with standard connector and EEPROM.
Download the App
Download the MYeBOX® application and start to make efficiency action on your facilities. With application, you can connect to any paired device from anywhere, when you need.
